CAT6A SFTP Cable 500ft — Shielded LAN Cable, Solid Copper 23AWG, LSZH, 10Gbps

Product Categories
Integrity Cable Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CAT6A SFTP Cable 500ft — Shielded LAN Cable, Solid Copper 23AWG, LSZH, 10Gbps

Brand Name : ITI -LINK

Model Number : ITI-CTSF6A-019

Certification : UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS

Place of Origin : SHENZHEN

MOQ : 1000pcs

Price : 50$-100$

Payment Terms : T/T

Supply Ability : 2000pcs/Day

Delivery Time : 15-45 Days

Packaging Details : Inner Box Size: 32 Cm (Length) × 32 Cm (Width) × 18.5 Cm (Height) Outer Box Size (For Packing): 39 Cm (Length) × 33.5 Cm (Width) × 34 Cm (Height)

Cable Type : CAT6A SFTP Cable

Conductor : 23AWG Solid Copper

Bandwidth : 500MHz — supports 10Gbps

Jacket : LSZH PVC/PE

Applications : Data Center Cable, Industrial Network Cable, 5G, manufacturing

Compliance : CPR Dca-S2/D2/A1, RoHS, CE, UL

Contact Now

CAT6A SFTP Cable 500ft — Shielded LAN Cable, Solid Copper 23AWG, LSZH, 10Gbps



Product Description:

Industrial-grade CAT6A SFTP Cable with 23AWG solid copper conductors and foil + braid shielding. LSZH jacket for fire safety, supports 10Gbps and 500MHz — ideal Data Center Cable and Industrial Network Cable deployments in warehouses, factories and enterprise campuses.

  1. Product Overview: The ITI-LINK CAT6A SFTP Cable is a premium Shielded LAN Cable built for demanding environments. The 23AWG solid copper conductors and SFTP (foil + braided copper) shielding deliver robust signal integrity and exceptional resistance to EMI/RFI for reliable 10Gbps performance. This Data Center Cable is available on 500ft reels for bulk deployment.
  2. Performance: Engineered to support IEEE 10GBASE-T and 500MHz bandwidth, this CAT6A SFTP Cable ensures low attenuation and minimal crosstalk over standard 100m channels and beyond for trunk runs. Shielding provides >50dB EMI/RFI reduction, maintaining stable throughput in noisy industrial and commercial settings.
  3. Structure & Materials: Each cable contains four twisted pairs of 23AWG oxygen-free solid copper conductors, an inner pair-level foil, overall aluminum foil and braided copper shield layer, and an LSZH (Low Smoke Zero Halogen) jacket. Optional PVC/PE jacket variants are available for outdoor or specific installation needs. Orange jacket option aids fast zone identification.
  4. Application & Value: As a wholesale Industrial Network Cable and Data Center Cable, it is ideal for server rooms, factory automation, 5G base stations, renewable energy sites, and campus backbone runs. Bulk 500ft reels simplify logistics and lower cost per foot for large projects and managed services.
  5. Brand Trust & Compliance: ITI-LINK provides CPR Dca-S2/D2/A1 compliance, RoHS, CE, and UL listings plus a 25-year performance warranty. Choose this
  6. CAT6A SFTP Cable for secure, long-term installations that require the safety of LSZH and the performance of solid copper shielding.


Technical Parameters:

Product Description:CAT6A SFTP Cable 500ft — Shielded LAN Cable, Solid Copper 23AWG, LSZH, 10Gbps
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%






Insulation

 Material


PE Skin-Foam-Skin

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.35 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.38 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=19.0 mm (27%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (35%) elongation after aging ≥ 150 %
3p: S=21.5 mm (31%) tensile strength after aging ≥10.5 MPa
4p: S=27.0 mm (40%)



jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 10 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 8 MPa
Filler / Packing
OD / Drum NA



Shield

 Shield Pair Shield

Construction /
Material Aluminium (PET/ALU)
Coverage ≥ 115%
Braid Material ɸ 0.12mm Aluminum-magnesium braided
Coverage ≥ 40%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 7.5 ± 0.2
Average THK 0.60 ~ 0.70


Color

according to the customer's

requirements
Marking Color Orange
Marking

according to the customer's

requirements

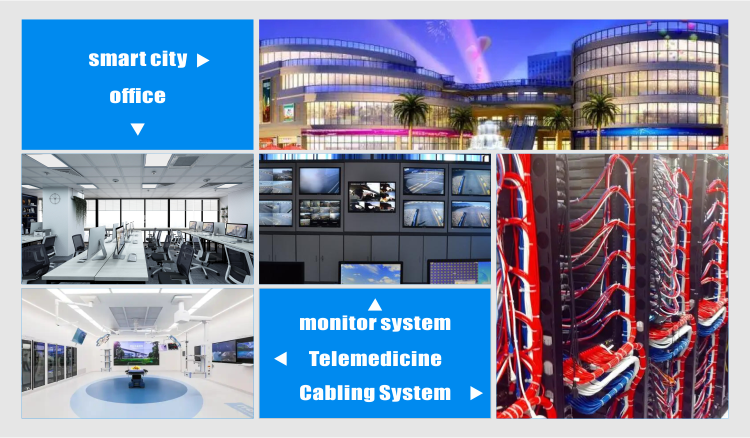

Applications:

Ideal Data Center Cable and Industrial Network Cable for server racks, backbone trunks, and high-density switch panels. Use in data centers, enterprise campuses, colocation facilities and network rooms where CAT6A SFTP Cable shielding prevents crosstalk and supports reliable 10Gbps traffic.
